Geofire > Fire Security Solutions

Geofire manufactures a large wide range of electromagnetic door holders and other activation devices used widely as part of a fire, security or ventilation system.
These range from fire door holders and closers to smoke curtain releasers and shutter locks.

The products enable fire doors to be legally held in an open position to give ease of access through a building, in compliance with the Disability Discrimination Act. These include the 'Wire Free' SALAMANDER - a system of battery powered, electromagnetic fire door holders linked by radio signals to a central controller.

They are all robustly designed for wall, floor or ceiling mounting in a variety of finishes including decorative, to match the decor of current and new buildings. The high quality of the finish ensures that little or no servicing is required once these products are fitted.

For new buildings - we recommend Geofire's conventional wired versions.

For refurbishment - we recommend Geofire's 'Wire Free' SALAMANDER door holder range.

Our products meet relevant EN, UL, EMC and radio standards.

All our people are Passionate about the company and its products and are very keen to share this Passion with our customers so please contact us today and find out for yourself how The Innovators of Fire Protection can help your business.

Angela Mason and Amanda Kilburn await your call on +44 (0) 1388 832 252 or e-mail us at: enquiries@geofire.co.uk

ADESSO DISPONIBILE IN ITALIANO

Dépliant Geofire: Sicurezza antincendio	Salamander fermi porta senza cavi	Doormouse fermi per porte tagliafuoco con montaggio a parete

Featured Links

	Salamander a system of battery powered, electromagnetic fire door holders linked by radio signals to a central controller. Read More...

	NEW Company Brochure View our brand new company brochure featuring our latest product range in PDF format. Read More...

	British Standards BS 7273-4:2007 British Standard Code of practice for the operation of fire protection measures. Read More...

	Award Winning Solutions Geofire has just won a Gold Medal at the Poznan International Fair for the Salamander Door Holder. Read More...

Geofire Products

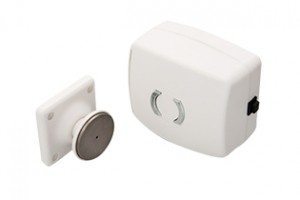

Salamander

‘INNOVATORS OF FIRE TECHNOLOGY’

‘SALAMANDER’

‘SALAMANDER’ is a system of battery powered, magnetic fire door holders controlled by radio signals
from a central controller using patented Geofire technology. The controller is mains powered and is
linked into the building’s fire control system. The system enables fire doors to be legally held in an
open position to give ease of access through a building, in compliance with the Disability Discrimination Act. It also complies with the most stringent class of the very latest Code of Practice for door release mechanisms BS 7273 Part 4 Category A. Unlike conventional fire door holders, no wiring has to be run through the building, making the system cost effective and convenient to install.

SALAMANDER IS THE SAFE LEGAL AND COST EFFECTIVE SOLUTION

FAIL-SAFE

Automatically releases all fire doors when fire alarm sounds or in the event of a radio failure or low batteries.
Self-monitoring of RF signal, battery and mains supply.
CE approved under the CPD (construction products directive) and suitable for installations meeting BS7273 Part 4 category A.
Restriction free movement around the building in line with the Disability Discrimination Act.
Prolongs fire door life as the system is designed to leave the doors in the open position. This means the door is far less susceptible to damage.

NO MORE CABLES

Labour costs reduced by 90%.
Minimum disruption.

EASY INSTALLATION

No unsightly cables.
Fitted easily and quickly.
Portable - can be moved to individual doors as needed.
Booster units easily added to cover large installations.
Mounting stands, chain mounted keepers and floor mounting brackets available to assist installation.

BATTERY POWERED

Innovative magnet conserves battery power.
Expected battery life of up to two years.
Visible indication of battery and radio strength for any door holder

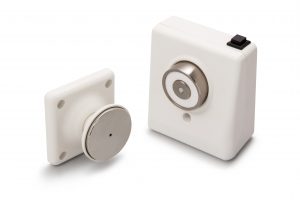

Doormouse Wall Mounted Fire Door Holders

The Doormouse Electromagnetic Fire Door Holder is the latest version of our top selling surface mounted door holder.

Surface mounted design that fits any standard back box
Attractive fire resistant ABS casing
200N or 500N door holding force
24Vdc or 230Vac supply voltage
Zero residual force
CE approved under CPD (construction products directive)
Approved to EN1155 for power size 3-6 door closers
Supplied with adjustable keeper plate
Integral release button

Decorative Wall Mounted Fire Door Holders

Architectural designs with polished mounting plates in high quality finishes.

These Fire Door Retainers are fitted with a manual release button and supplied with matching keeper plates.

High quality chrome, stainless steel & brass finishes
Ideal for hotels, offices and similar prestigious installations
Flush or surface mounting

200N holding force
24Vdc or 230Vac supply voltage
Zero residual force
CE approved under CPD (construction products directive)
Approved to EN1155 for power size 3-6 door closers
Supplied with matching low profile keeper plate
Integral release button

Conquest Wall Mounted Fire Door Holders

The Conquest Electromagnetic Fire Door Holder features a metallic core and can be surface or flush mounted.

Metallic face plate and housing
Surface mounted or flush fitting to back box
200N holding force
24Vdc or 230Vac supply voltage
Zero residual force
CE approved under CPD (construction products directive)
Approved to EN1155 for power size 3-6 door closers
Supplied with adjustable keeper plate
Integral release button

Floor Mounted Fire Door Holders

A Floor Mounted electromagnetic door holder, ideally suited to applications where maximum protection is needed against vandalism or accidental damage.

It features a rugged cast aluminium housing, a holding electromagnet with integral ejection pin and a manual release switch.

Cable entry can be through the base or through a 20mm hole provided in the housing for surface mounted conduit or pyro.

Robust aluminium construction
200N or 500N door holding force
24Vdc supply voltage
Zero residual force
Tested to EN1155
Supplied with adjustable keeper plate as standard
Integral release button

Universal Fire Door Holders

The Universal door holder is suitable for floor, ceiling or wall mounting. Fitted with an integral release switch, it is available in various lengths of mounting post and features a swivel mounted head.

Wall, floor or ceiling mounted
Heavy duty design
500N or 1000N holding force
24Vdc supply voltage
Zero residual force
Tested to EN1155
Supplied with adjustable keeper plate
Integral release button
200mm, 300mm and 500mm standard pole lengths

Weatherproof Fire Door Holders

The Geofire IP65 Weatherproof Door Holder is used in marine and other arduous applications where exposure to the elements is a constant requirement.

These robust encapsulated electromagnetic door holders have a door holding force of 120kg (1200N) and can be supplied in 24Vdc or 230Vac versions. Like all Geofire products, this magnet is 100% duty rated.

IP65 ingress protection
Suitable for marine and outdoor applications
1200N Holding Force
24Vdc, 230Vac and many other supply voltages
Supplied with special keeper plate
Robust design

Fire Door Sentry - Complete Fire Door Pack

A complete stand alone CE approved fire door control system that dependant on choice may or may not be wired into an existing fire system. Why go to the expense of installing a full fire system when your only need is to hold corridor doors open. Never again will there be a need to see internal doors wedged open or held open with fire extinguishers.

The pack consists of a control panel, two detectors and a fire door retainer. This permits control of one fire door. This basic pack can be expanded to control up to 6 fire door retainers and allows staggered closing of double doors to ensure they close correctly.

A complete fire door sentry kit contains :

Two smoke detectors
One electromagnetic fire door retainer plus keeper plate
One control box with visual alarm/fault indicators and including test and reset options.

Fire Door Magnets - USA Specification

This electromagnetic door holder is for retaining swinging fire doors open for ease of access in busy buildings. It is designed for use with a separate door closer and separate fire detection system. The magnet and facia plate are suitable for flush mounting with a standard back box or for surface mounting with the supplied enclosure.

Holding Magnets

A range of standard electromagnets that can be used on roof vents and other smoke outlets. All magnets can be supplied with flying leads, and the size 50 and above can be fitted with a 3-pole plug and free socket.

Magnets can be supplied with mounting flanges to suit any special requirements

Simple Construction
7 Standard sizes available
Commercial standard sizes
Holding forces from 140N to 3500N

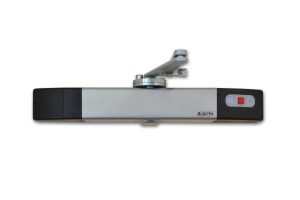

Electro-Hydraulic - Hold Open and Swing Free Door Control

Geofire’s electro-hydraulic door controls provide the solution to meeting the requirements of the Disability Discrimination Act and the need for fire safety in public buildings.

Can be set on site to hold the door open at 70 degrees plus or to swing free as if no door closer was fitted until the fire alarm is activated or the power fails - ideal for people with mobility problems.

24Vdc supply voltage
Integral release button
CE approved under CPD (construction products directive)
Easy manual pull-off
Temperature stabilised fluid
Pressure relief valve
Cam & roller mechanism
Full square or radius corner in stainless steel, polished brass, silver and RAL colours

Smoke Vent Automatic Winch

The Geofire range of powered winches offer a compact solution to the problem of opening vents in large buildings.

The slim-line design allows the winch to be fitted unobtrusively in the vent frame work. A powerful 230V motor provides ample closing force via cables fitted to the vent.

Once the vent/fire door retainer is closed the winch locks in position with a 24 V brake.

Smokewinch Automatic Vent Winch
Automatic closing of smoke vents and fire door retainers with failsafe opening
Slim-line design
1400N closing force
Can be used for controlled vent opening for Temperature control etc
Alternative sizes available

Accessories

	Sprung Keeper Plate This is a spring loaded keeper plate for use with our 200N door holders, to absorb shock loading.		Chain Keeper Plate The Chain Keeper enables a wall mounted electromagnetic door holder to be used even when the door will not open fully to meet the magnet. It is a very flexible solution to awkward mounting. A one metre length of chain is supplied as standard.
	Adjustable Keeper Plate This is a fully adjustable keeper plate and is supplied as standard with most door holders.		Floor Mounting Bracket A floor mounting bracket is available to suit all wall mounting Door Holders. With this the magnet can be mounted in any convenient position on the floor to suit the door. It is supplied in a finish to match the Door Holder with mounting instructions.
	Low Profile Keeper Plate This is a non-adjustable slim style of keeper plate for our 200N and 500N door holders. It is an alternative to the standard adjustable keeper design where the gap between the door and the magnet needs to be kept to a minimum.		TRX Power Supplies TRX power supplies can be used to provide an unregulated dc supply to operate a wide variety of equipment, where the charging of standby batteries is not a requirement. Ideal for powering 24V door Holders.
