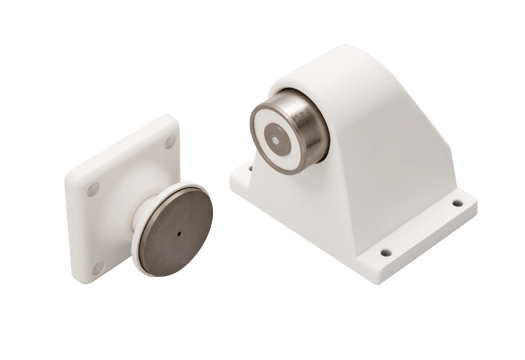

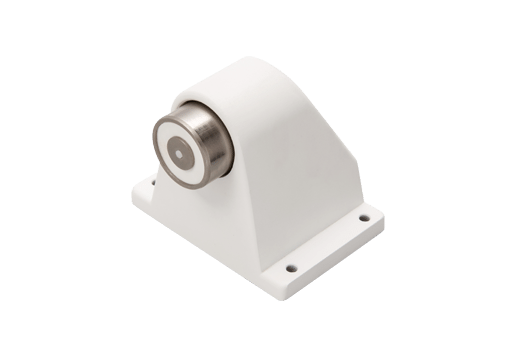

Floor Mounted Fire Door Holder

The floor mounted fire door holder is designed to hold fire doors for ease of access releasing them when an alarm is triggered. They are ideally suited to applications where maximum protection is needed against vandalism or accidental damage.

The floor mounted fire door holder is also suited to applications where the door is not opening near a wall. The holder features a rugged cast aluminum housing, a holding magnet with integral ejection pin and a manual release switch. Cable entry can be through the base or through a 20mm hole provided in the housing for surface mounted conduit or pyro.

Also available in heavy duty switch versions and alternative keeper designs and voltages. Every fire door holder is supplied complete with a door mounting keeper plate.

  • Robust aluminium construction
  • 200N or 500N holding force available
  • Manual release switch
  • Surface cable entry
  • Supplied with keeper plate
  • Standard and vandal resistant form available
  • Approved to EN1155
  • CE marked under the Construction Products Regulation
  • 12 month warranty
